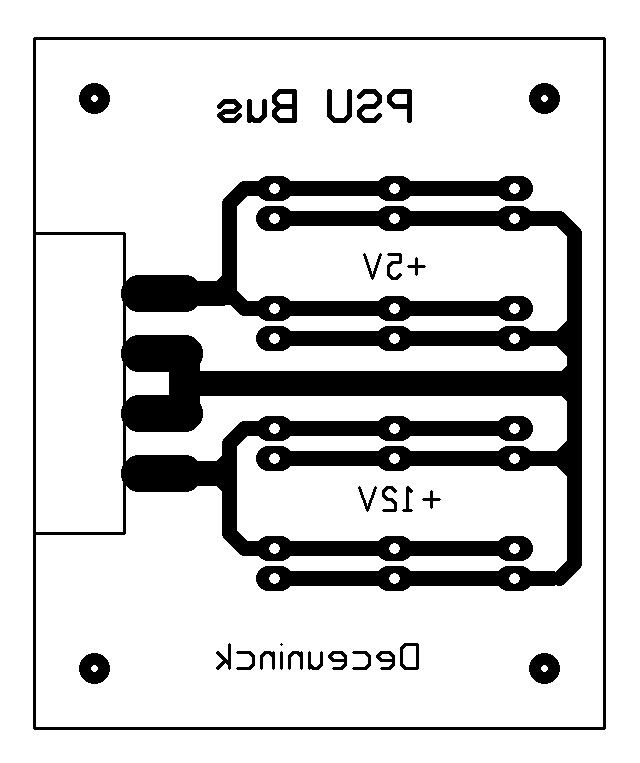

 PCB layout of the PSUbus |
Download PCB layout in Circad'98 format |

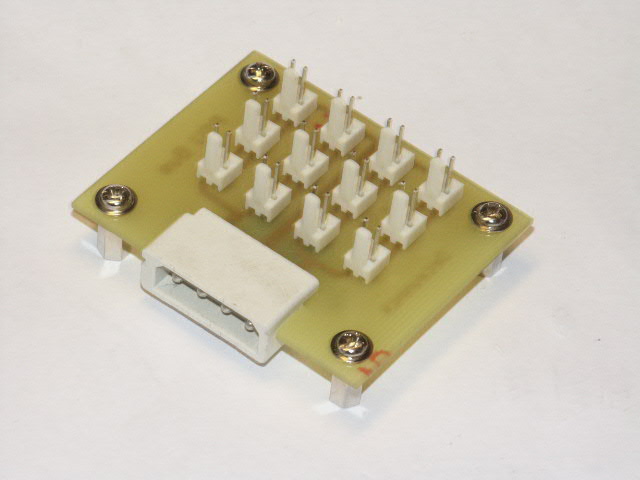

 Picture of the finished project |

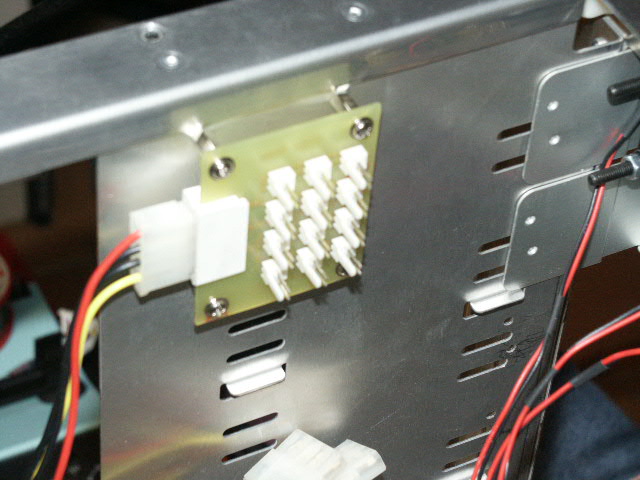

 Mounted in my PC-70 |
PSU Bus
Description:
The purpose of this board is to provide six +5V and six +12V connections, as I have lots of devices to connect to the power supply such as fans, my CCFL's, my voltage monitor, radiator fan regulator, LCD, CPU indicator or whatever needs 5 or 12V. The PSUbus needs only one Molex connector as input from the power supply. For the outputs I used little 2-pin male connectors (the same kind as the fan connectors on a mobo but 2-pin).
